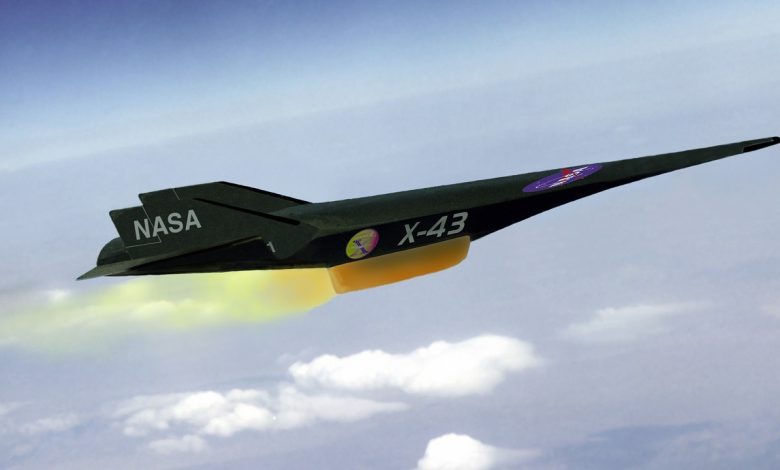

NASA Spent About $230,000,000 Over 8 Years on the Mach 9.6 X-43A Hypersonic Scramjet. It Flew 3 Times, the First 1 Was Destroyed by Its Own Booster, and the Engine Ran for Roughly 11 Seconds.

NASA’s Hyper-X program ran for 8 years, cost roughly $230,000,000, and produced exactly 3 flights. The first ended in wreckage — the booster rocket carrying the X-43A lost control and the aircraft was destroyed with it. The second reached Mach 7. The third, in 2004, reached Mach 9.6, nearly 10 times the speed of sound, and holds the Guinness World Record for the fastest aircraft ever flown on an air-breathing engine. For comparison, the fastest rocket-powered airplane, NASA’s X-15, managed Mach 6.7, and the SR-71 Blackbird managed slightly more than Mach 3.2. No air-breathing vehicle has gone faster than the X-43A in the 22 years since.

The X-43A Smashed the Record Books

NASA’s X-43A is a decidedly odd aircraft. Unmanned, launched from a B-52 Stratofortress, and mounted to the top of a rocket, its X-designation indicates it is purely a research vehicle used to gather valuable flight data, not to enter serial production.

The aircraft is wildly different from any aircraft in service with the United States military, and though it is no longer in use, the X-43A contributed to other hypersonic flights, despite flying just three times.

X-43A: The Rhyme Behind the Reason

NASA explains that there were three core reasons for wanting to build and test a hypersonic research vehicle like the X-43A.

For starters, “high energy requirement to simulate the mission flight conditions meant fewer ground test options were available,” which led NASA to conclude that “shock tunnel testing was the only option.” Secondly, “short test times only allower single performance points per run, so no fueling or cowl position transitions possible.”

As a consequence, “propulsion database uncertainties increased.”

In sum, NASA needed to put an actual, physical aircraft through its paces if it was to get actionable information that could be applied to other programs. Factors such as intense heat had to be managed, and there were limits to what could be accomplished with computer simulations alone.

High Risk but High Reward

The engineering challenges were prodigious and would require substantial funding to get an air-breathing engine to hypersonic speeds, NASA writes. “The eight-year, approximately $230 million NASA Hyper-X program was a high-risk, high-payoff research initiative that tackled challenges never before attempted. No vehicle powered by an air-breathing engine had ever flown at hypersonic speeds.”

But in addition, “the rocket boost and subsequent separation from the rocket to reach the scramjet test conditions involved complex elements that had to function properly for mission success. Careful analyses and design were applied to reduce risks to acceptable levels; however, some residual risk remained inherent to the program.”

Ultimately, the project would set records, despite an inauspicious start.

The first flight ended in disaster when the X-43A’s booster rocket lost control, ultimately destroying the X-43A mounted to its nose.

The X-43A was a small experimental research aircraft designed to flight-demonstrate the technology of airframe-integrated supersonic ramjet or “scramjet” propulsion at hypersonic speeds above Mach 5, or five times the speed of sound. Its scramjet engine is an air-breathing engine in which the airflow through the engine remains supersonic.

The second flight, however, was a successful scramjet-powered flight that reached Mach seven, or seven times the speed of sound.

But it was the last flight, in 2004, that was groundbreaking: it reached Mach 9.6 — nearly 10 times the speed of sound — and even earned a Guinness World Record for the fastest aircraft with an air-breathing engine.

In a press release covering the world record recognition, NASA explained that “the previous known record for an air-breathing vehicle – but not an airplane – was held by a ramjet-powered missile, which achieved slightly more than Mach 5.”

Still quite fast, but nowhere near the X-43A. Later, “the highest speed attained by a rocket-powered airplane, NASA’s X-15 aircraft, was Mach 6.7. The fastest air-breathing, manned vehicle, the SR-71, achieved slightly more than Mach 3.2.”

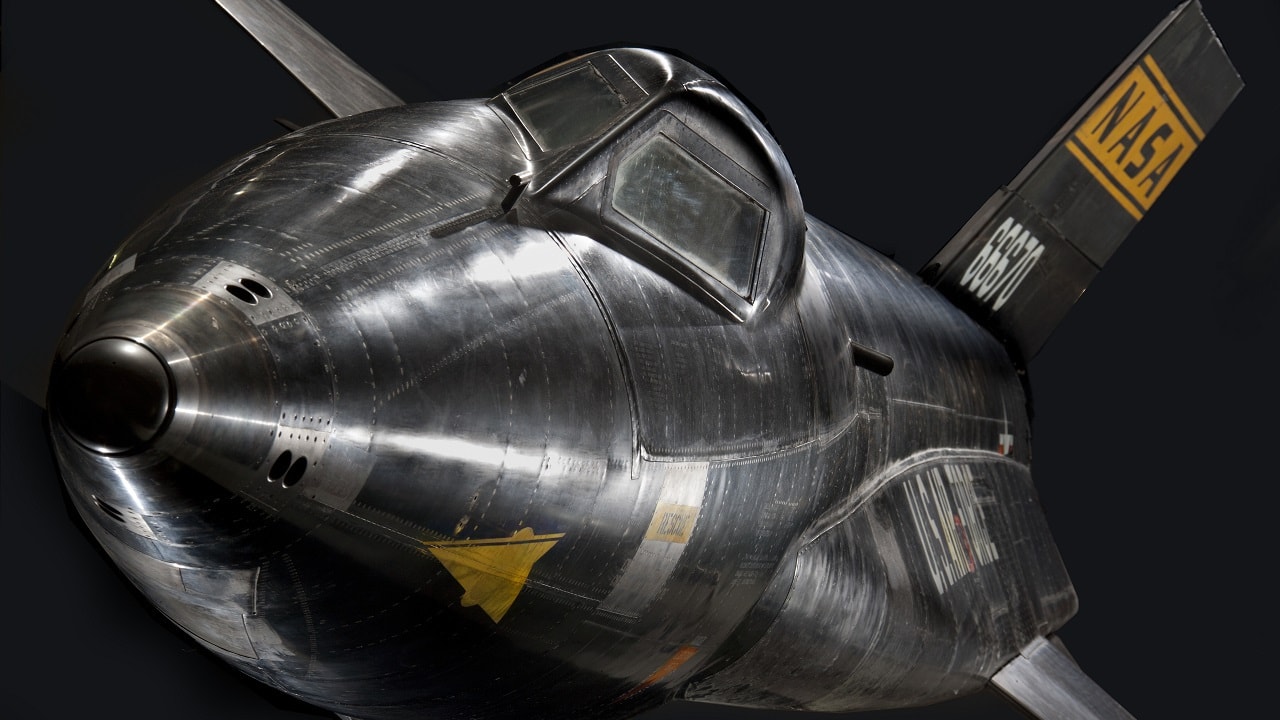

X-15. Image Credit: Creative Commons.

Three-quarter left front view, close up, of North American X-15 (s/n 56-6670) at the Smithsonian National Air and Space Museum, July 10, 2007

Both quite fast, but handily outpaced by the X-43A, which “more than doubled, then tripled, the top speed of the jet-powered SR-71.”

Though in a different class of aircraft entirely — the SR-71 Blackbird was a piloted reconnaissance aircraft of Cold War vintage — it was, for many years, the fastest aircraft in existence.

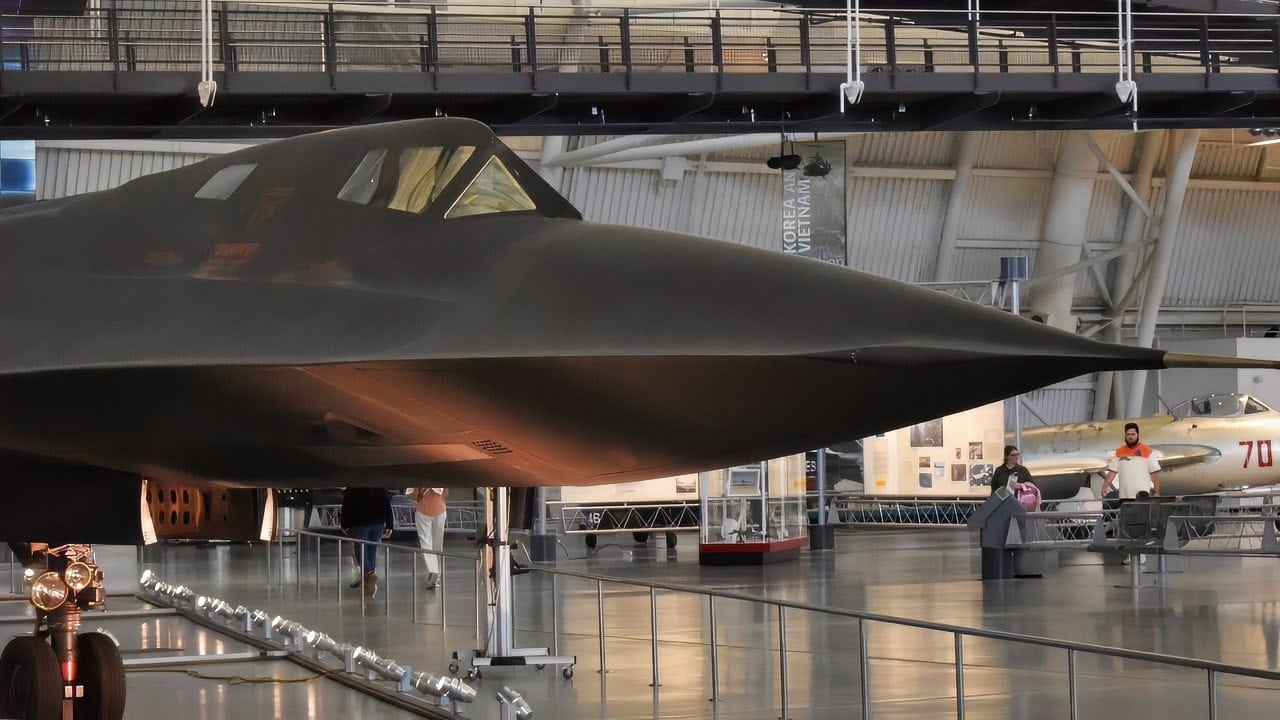

SR-71 Blackbird Photo by Dr. Brent Eastwood of 19FortyFive.

Moving Forward

The Congressional Research Service, a nonpartisan think tank that reports to the United States Congress, notes that early hypersonic weapons, though technically successful in achieving the high speeds for which they are primarily designed, will likely lack the sophistication to be more viable for military applications.

One significant issue will be target tracking.

The CBO writes that “first-generation hypersonic missiles are not expected to have the accuracy or sensors needed to operate effectively in situations in which targets may be moving.”

The technical hurdles to hypersonics are clear and significant: thermal management may ultimately be a limiting factor, one that, in essence, caps speeds. But the operational hurdles may prove to be more challenging — and more significant. Primary among these are nuclear ambiguities.

The Congressional Budget Office takes note of an earlier program that was ended because of nuclear ambiguity: the United States Navy’s Conventional Trident Modification program, an early 2000s initiative that would have attempted to replace some Trident intercontinental ballistic missiles’ nuclear payload with a conventional explosive alternative.

Though the modification would have offered greater operational flexibility, an adversary would not be able to distinguish that missile from its original nuclear-tipped configuration.

The risk of a nuclear retaliation to a conventionally armed weapon was too high, and the project was shuttered.

The X-43A Legacy

While hypersonic weapons are indeed complex, it is not only their engineering particulars that will factor into their use; their incredibly high speeds will narrow the response window of peer adversaries and potentially prompt a response before knowing exactly what kinds of weaponry are incoming — a fearsome prospect indeed.
